Ergotron StyleView Tablet Medical Cart SV10

The Ergotron StyleView® Tablet Medical Cart (SV10) is a compact, lightweight solution designed to bring tablets exactly where they’re needed in fast-paced healthcare environments. Engineered for mobility and simplicity, this nimble cart allows caregivers to move effortlessly between patient rooms, hallways, and clinical work areas—supporting efficient, point-of-care documentation and interaction.

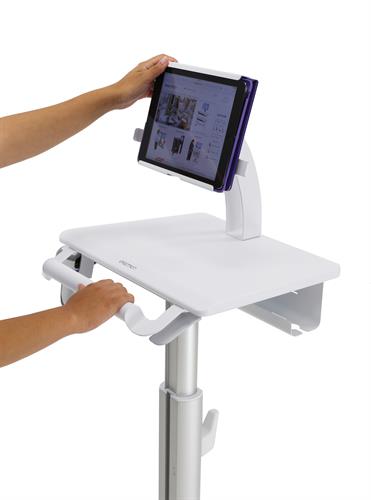

Despite its slim profile, the SV10 offers 15 inches (38 cm) of vertical height adjustment, making it suitable for both seated and standing use. The platform and screen adjust easily to the ideal working height, ensuring ergonomic comfort for a wide range of clinical tasks. An integrated hand-brake securely locks the platform in place, delivering an ultra-stable worksurface during use.

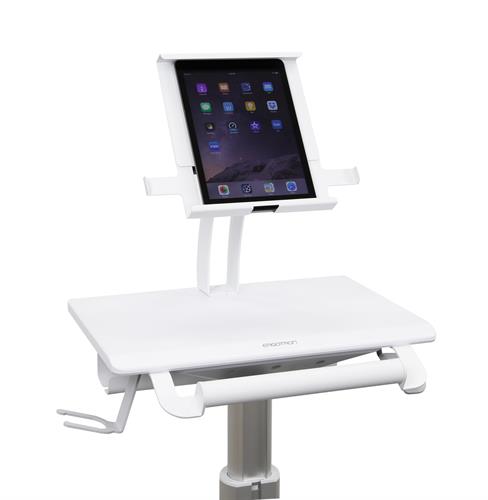

The tablet mount features versatile tilt functionality, allowing the screen to be positioned vertically, horizontally, or anywhere in between for optimal viewing and input. This flexibility supports different workflows, whether clinicians are entering data, reviewing charts, or engaging directly with patients. Users can also select the level of tablet security that best fits their needs, balancing accessibility with device protection.

Built with sturdy metal construction, the cart is designed for durability in demanding medical settings. Its smooth, easily cleanable surfaces support infection-control protocols, while the integrated worksurface provides a convenient platform for a keyboard or accessories. The T-slot channel interface on the column enables easy attachment of optional accessories, allowing the cart to be customised for specific applications.

Compact, stable, and adaptable, the Ergotron StyleView Tablet Medical Cart delivers ergonomic flexibility and reliable performance—helping clinicians focus on patient care wherever they go.

Product Name: StyleView® Tablet Cart SV10, Non-Powered

Colour / Finish: White & Aluminium; powder-coat paint on steel surfaces

Product Weight: 15.6 kg

Shipping Weight: 20.7 kg

Shipping Dimensions: 40" × 23.5" × 23.5" (102 × 60 × 60 cm)

Tablet Orientation: Landscape or portrait

Height Adjustment Range: Worksurface height: 33"–48" (84–122 cm)

Weight Capacity: Tablet: ≤ 2.5 lbs (1.1 kg); cable storage: ≤ 2 lbs (1 kg); column (incl. accessories): ≤ 20 lbs (9.1 kg)

Tablet Security Options: VESA hard mount, easel bracket placement, or easel bracket with top grip clamp

VESA Compatibility: VESA FDMI MIS-D, C; 75 × 75 mm and 100 × 100 mm

Tablet Size (Easel Bracket): Max width: 12.25" (31 cm); min height: 6.5" (16.5 cm); max height: 9.5" (24 cm); max thickness: 0.8" (2 cm)

Included Components: Worksurface, tablet riser with tilting tablet mount, cable/brick storage compartment, storage hook, scanner holder

Casters: Four 3" casters; two locking

Worksurface Dimensions: 18" × 12.5" (45.7 × 31.8 cm)

Cable Storage Area: 14.5" × 2.75" (36.8 × 7 cm); located beneath worksurface

Scanner Holder: Included; mounts under worksurface on left side only

Base Footprint: 19" × 19" (48.3 × 48.3 cm)

Safety Certifications: Tested to UL / EN / IEC standards

Intended Environment: Medical and clinical point-of-care settings

Warranty: Seven years
