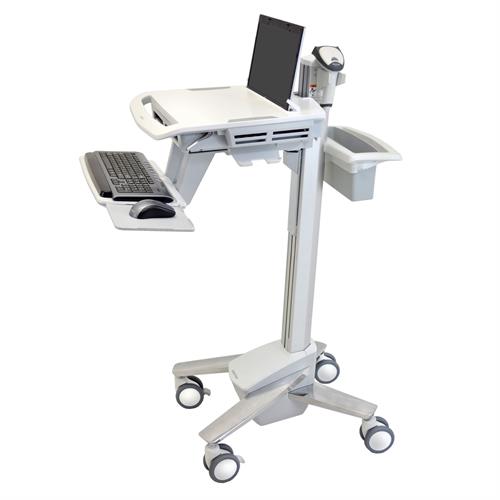

Ergotron StyleView EMR Non Powered Laptop Cart

The Ergotron StyleView® Laptop Cart is an innovative, ergonomic mobile workstation designed specifically for healthcare environments. Its responsive, lightweight design allows caregivers to effortlessly manoeuvre the cart to the point of need, enabling nurses and clinicians to focus on patient care without interruption.

Engineered for maximum ergonomic comfort, the cart features single-motion sit-to-stand height adjustment and an adjustable keyboard tray, accommodating the largest range of users. Whether seated or standing, caregivers can work comfortably, promoting wellness and productivity throughout long shifts.

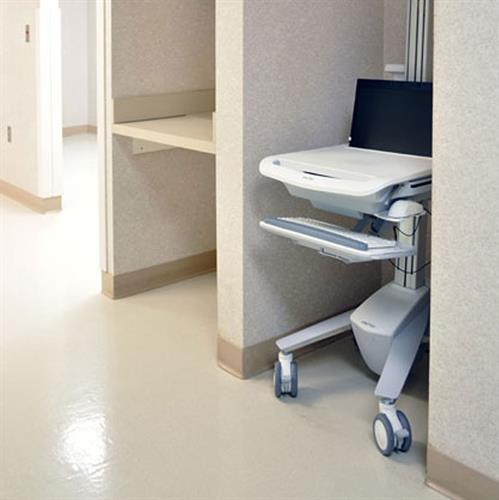

The compact footprint and ultra-smooth gliding casters make the cart ideal for space-constrained areas, easily traveling across crowded carpet or hard-surface floors. Surfaces are treated with antimicrobial protection, supporting infection control in busy clinical settings.

With its open-architecture design, the StyleView Laptop Cart supports most laptops—including widescreen models up to 17.3" diagonal—making future hardware deployments and upgrades simple. Rigorous durability testing, including Ergotron’s 10,000-cycle motion test, ensures a minimum of five years of trouble-free sit-to-stand adjustment, providing reliable performance in demanding healthcare environments.

Compact, ergonomic, and thoughtfully engineered, the StyleView Laptop Cart delivers a versatile, mobile, and future-ready solution for point-of-care documentation and workflow efficiency.

Ergonomics: Negative-tilt keyboard tray with left/right mouse tray keeps wrists neutral for comfort and productivity; designed for users 5'0"–6'1" (152–185 cm) for prolonged sitting or standing

Height Adjustment: Exceptional range accommodates shorter and taller users; cart weight 55 lbs (25 kg) for easy relocation; patented CF™ lift-and-pivot motion technology minimizes force required

Safety & Cleanability: Antimicrobial-treated surfaces; smooth continuous handles; RoHS, REACH, WEEE, and EU (94/62/EC) packaging compliant; tested to UL/EN/IEC and FCC Part 15 Class A standards; durable aluminum, high-grade plastic, and zinc-plated steel exterior; one-piece worksurface promotes infection control

Storage & Security: Lockable ventilated laptop storage with heavy-duty keys and locks; integrated CPU lock inside compartment for added security

LED Lighting: Four amber LEDs over keyboard tray with 15-minute auto shut-off; control button located on worksurface

Accessory Support: Notebook screen holders reduce hinge vibration; universal mounting slot for accessories and equipment; T-slot channel interface enables further customization

Cable Management: Concealed cable management system organizes cords for improved cleaning and workflow efficiency

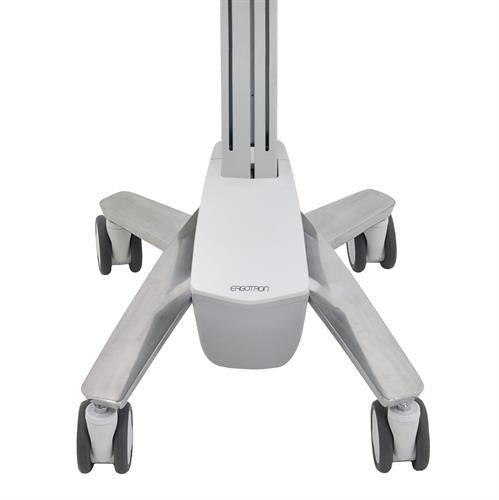

Assembly & Mobility: Ships fully assembled; four ultra-smooth gliding casters (two locking) for easy maneuverability and stable positioning; integrated four-port USB hub included

Compatibility: Open-architecture design accommodates most laptops up to 17.3" diagonal, simplifying future technology upgrades

Dimensions: Wheel-to-wheel base: 17" × 21" (430 × 533 mm); worksurface: 22"W × 19.6"D (562 × 498 mm)

Warranty: Five years for mechanical components; one year for electrical components

Product Name: StyleView® Laptop Cart SV41, Non-Powered

Colour / Finish: White, Grey, Polished Aluminium

Maximum Laptop Size: 17"W × 14.75"D × 2"H (432 × 375 × 51 mm)

Weight Capacity: Total maximum load on height-adjustment assembly: 18 lbs (8 kg); worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); laptop compartment ≤ 10 lbs (4.5 kg)

Lift / Height Adjustment: 20" (50.8 cm); laptop and worksurface adjust in tandem

Tilt: Not applicable

Pan: Not applicable

Rotation: Not applicable

VESA Compatibility: Not applicable

Constant Force Technology: Constant Force™ motion technology

Product Weight: 26.2 kg

Shipping Weight: 35.2 kg

Shipping Dimensions: 53"D × 34"W × 36"H (135 × 89 × 91 cm)

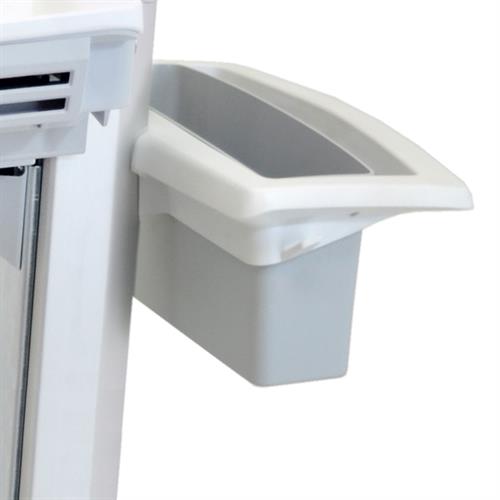

Included Components: Worksurface, CPU lock, secure laptop compartment, four-port USB hub, scanner holder bracket, mouse holder, wrist rest, negative-tilt keyboard tray, left/right mouse tray, rear handle, storage basket, cable storage, four high-performance casters (two locking)

GTIN: 00698833022728

Part Number: SV41-6100-0

Warranty: Five years
